Undercarriage Parts

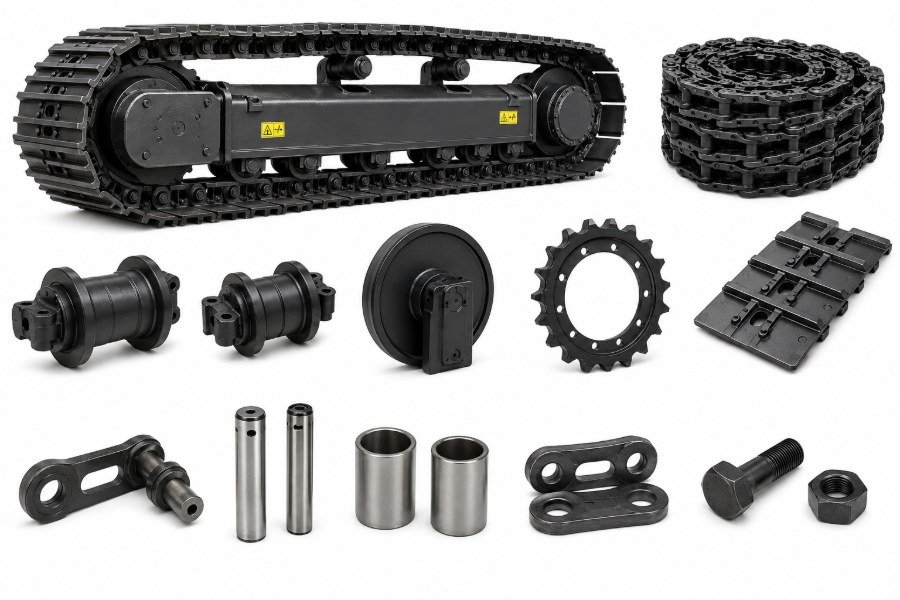

Undercarriage is the fastest-wearing system on any tracked machine and usually the largest single running cost. We trade and stock the full chain: track chains dry, sealed and sealed-and-lubricated, rollers, idlers, sprockets, shoes, adjusters and recoil springs.
Pranthi Enterprise, a spare parts trader and stockist in Surat, Gujarat operating since 1995, supplies undercarriage parts for crawler machines — track chains, track and carrier rollers, front and rear idlers, sprockets, track shoes, adjusters and recoil springs.
What we supply
Track chain group 11 lines
Fits Excavator, Bulldozer and Crane.
-
Track Chain Assembly (dry)
Basic chain, unsealed, for low-hour or budget applications
-
Track Chain Assembly (sealed)
Sealed pin and bush joint for longer life
-
Track Chain Assembly (sealed & lubricated)
Oil-filled joints, longest service life
-
Track Chain with Shoes
Complete chain supplied with grouser shoes fitted
-
Track Link (single)
Individual link for partial repair
-
Master Link
Split link used to join and break the chain
-
Track Pin
Hardened pin joining the links
-
Track Bush
Bush running on the sprocket teeth
-
Master Pin and Master Bush
Removable pin and bush at the chain joint
-
Track Chain Seal Kit
Pin seals, O-rings and thrust rings for chain joints
-
Track Pin Snap Ring / Retainer
Retains the master pin
Shoes and pads 8 lines
-
Single Grouser Shoe
Standard shoe for excavators, high traction
-
Double Grouser Shoe
Reduced ground damage, general use
-
Triple Grouser Shoe
Lower ground pressure, softer soil
-
Swamp / Wide Shoe
Extra-wide shoe for marshy and soft ground
-
Flat Shoe / Road Liner Shoe
Smooth shoe for paved surfaces
-
Rubber Track Pad (clip-on)
Bolt-on or clip-on pad protecting road surfaces
-
Track Bolt and Nut
High-tensile shoe fixing hardware
-
Shoe Plate (blank)
Unmachined plate for fabrication and repair
Rollers, idlers and sprockets 14 lines
Fits Excavator, Bulldozer and Crane.
-
Track Roller — Single Flange
Bottom roller, single flange type
-
Track Roller — Double Flange
Bottom roller, double flange type
-
Carrier / Top Roller
Supports the upper run of the chain
-
Front Idler
Guides and tensions the chain at the front
-
Rear Idler
Rear guide wheel on dozers
-
Idler Assembly with Bracket
Complete idler, yoke and support
-
Idler Yoke / Bracket / Support
Mounting frame for the idler
-
Idler Shaft and Bush
Internal idler rotating hardware
-
Roller Shaft, Bush and Bearing
Internal roller components
-
Floating Seal / Duo Cone Seal
Metal face seal for rollers and idlers
-
Sprocket (complete)
Drive wheel engaging the track bushes
-
Sprocket Segment
Bolt-on replaceable sprocket section
-
Sprocket Rim and Hub
Separate rim and hub components
-
Sprocket Bolts and Nuts
Segment fixing hardware
Tension, frame and guards 11 lines
-
Track Adjuster / Grease Cylinder
Sets track tension by grease injection
-
Track Adjuster Seal Kit
Seals and O-rings for the adjuster cylinder
-
Recoil Spring Assembly
Absorbs track shock loads
-
Recoil Spring (loose)
Spring only, for rebuild
-
Track Frame / Roller Frame
Main crawler side frame structure
-
Track Guard / Chain Guide
Prevents track derailment
-
Track Guiding Plate
Additional chain alignment guide
-
Equalizer Bar and Bushes
Oscillation bar between track frames
-
Pivot Shaft and Bush
Track frame pivot hardware
-
Undercarriage Bolt and Nut Kit
Complete fastener set
-
Grease Nipple and Fitting
Lubrication points for the adjuster
Common questions
Which machines take these undercarriage parts?
Crawler machines only — hydraulic excavators, bulldozers and crawler cranes. Wheeled machines such as backhoe loaders, wheel loaders and motor graders have no undercarriage, so nothing on this page fits them.
Do you supply sealed and lubricated track chains?
Yes. We handle dry (unsealed), sealed, and sealed-and-lubricated chain assemblies, and can supply chain with shoes already fitted. Tell us the machine make and model on WhatsApp and we will confirm what suits the hours and application.
Can I buy individual links, pins and bushes rather than a full chain?
Yes. Track links, master links, track pins, track bushes, master pin and bush sets and chain seal kits are all listed separately for partial repair.
